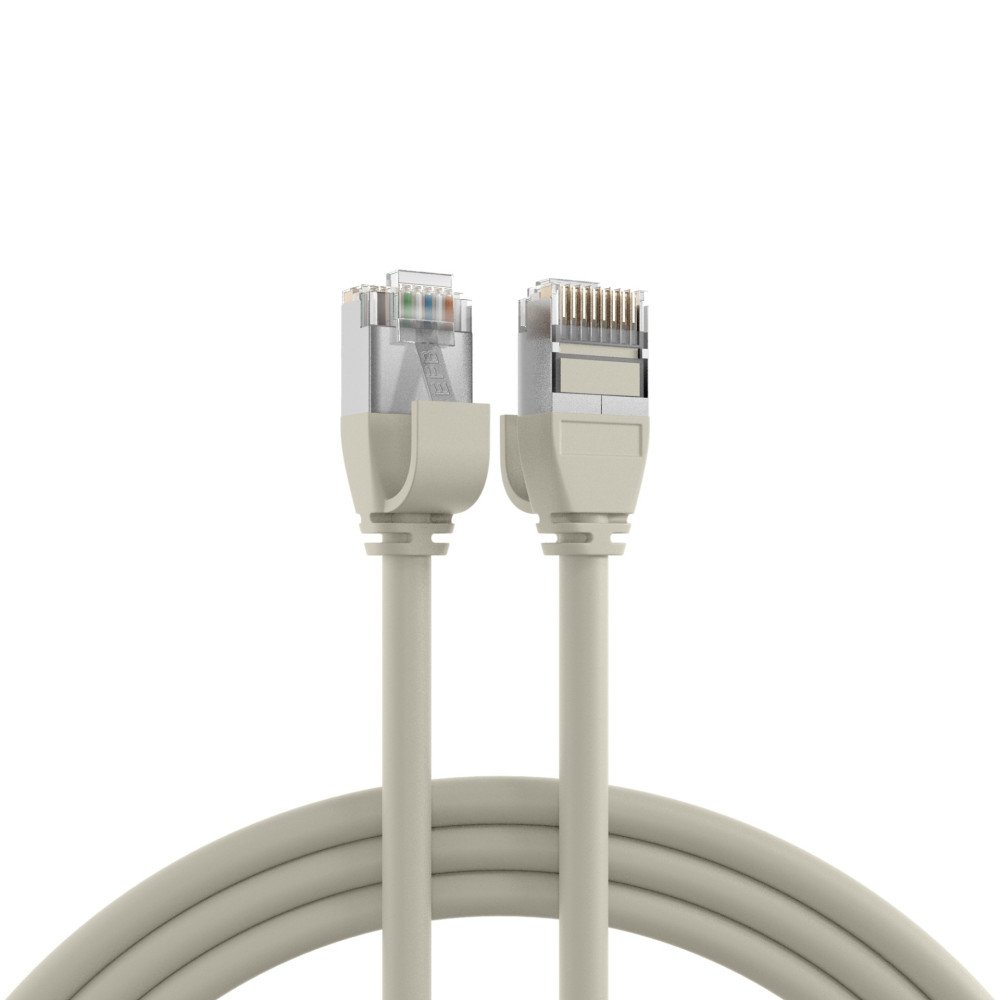

Name: Patch kabelis U/FTP Cat.6 EFB K5547GR.0,25 (0,25 m, TPE/LSZH, Pilkas)
Brand: EFB
SKU: KRPATUF6ALSZH025PRAMJ
Price: 2.84 EUR
Availability: InStock

Patch kabelis U/FTP Cat.6 EFB K5547GR.0,25 (0,25 m, TPE/LSZH, Pilkas)

Aprašymas

Tipas: Tinklo kabelis (patch)
Kategorija: Cat. 6
Struktūra: U/FTP
Izoliacija: TPE/LSZH
Ilgis: 0,25 m
Spalva: Pilka
Gamintojas: EFB
Produkto kodas: K5547 GR.0,25

Technines specifikacijos
AWG-size:30/7
Allocation:pagal TIA/EIA 568 B
Anti-kink sleeve:formuotas
Area of application:Pramoninis Ethernet, Struktūrinis kabeliavimas
Bending radius:>16 mm
Kabelis construction:4x2
Kabelis shape:plonas
Kabelis Tipas:U/FTP
Cabling standard:EN50173, ISO/IEC 11801, ANSI/TIA-568
Kategorija:6 A (TIA)
Colour anti-kink sleeve:pilka
Colour outer sheath:pilka
Conductive shield:Pasirinktas šarvo kontaktas
Laidininkas Material:Varis
Laidininkas resistance DC:376 Ω/km
Connector:IEC 60603-7-51
Connector Tipas:RJ45 trumpa versija
Contact Resistance:< 20 m Ω
Contacts:Auksu padengti
Current capacity:max. 1 A
Fire retardant version:pagal IEC60332-1
Halogen free:pagal IEC60754-2
Harmonised Standard:EN 50575
Impedance:100 ±15 Ω
Insulation Resistance:100 MΩ
Izoliacija material:TPE/LSZH
Ilgis imprint:Netiesa
Locking lever:Tiesa
Loop resistance:752 Ω/km
Low smoke:pagal IEC61034
Mating cycles:≥750
Model:šarvuotas
NVP value:76 %
Oil resistant:ne
Operating-/ tempering voltage:max. 50 V DC
Operating Temperature:-20 – 75 °C
Outer diameter of the Kabelis:4.0 mm
Ozone resistance:Ne
Pin assignment:1: 1
Printing:Cat.6 A U/FTP ULTRAFLEX PATCHCABLE TPE ***10 GE*** www. efb-elektronik. de
Resistance unbalance:< 4 %
Resistant to chemicals:Netiesa
Silicone-free:Tiesa
Suitable for degree of protection (IP):IP20
Tape width:500 MHz
Test voltage:1000 (V DC, 1min) branduolys/branduolys ir branduolys/ekranas
Transmission:10 Gbit
Tipas of connector connection 1:RJ45 8(8)
Tipas of connector connection 2:RJ45 8(8)
UL approbated:Netiesa
UV resistant:ne
