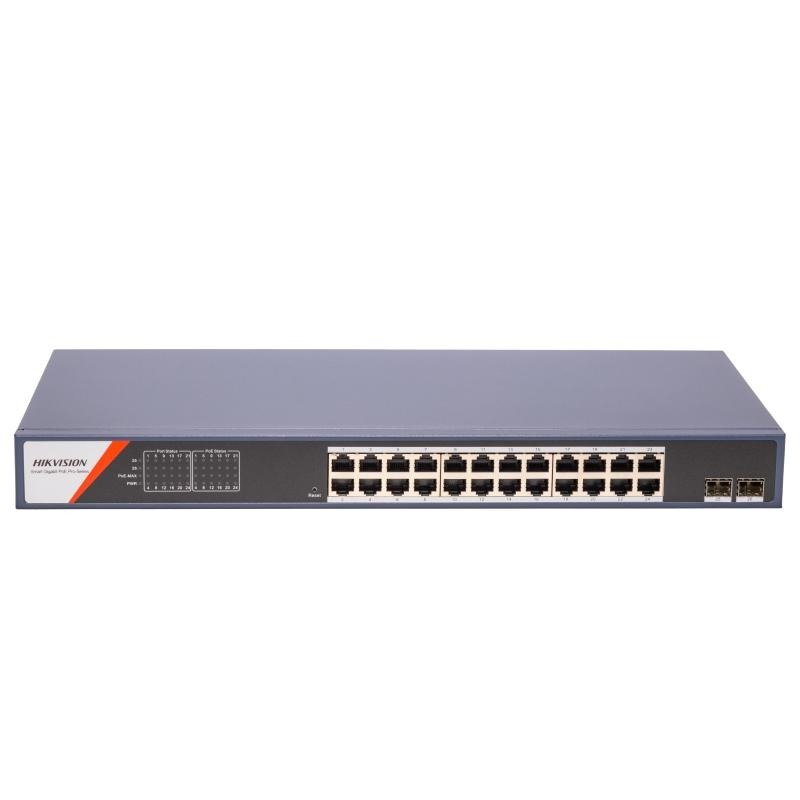

Name: 26 prievadų, 24 PoE prievadų komutatorius Hikvision DS-3E1526P-SI-24P2F
Brand: Hikvision
SKU: SWITCH3E1526PSI24P2F
Price: 446.03 EUR
Availability: InStock

26 prievadų, 24 PoE prievadų komutatorius Hikvision DS-3E1526P-SI-24P2F

Aprašymas

24 × 10/100/1000 M Po E prievadai, 2 × 100/1000 M SFP
Bendras Po E galios biudžetas: 370 W
Palaiko energijos taupymo režimą su vartotojo nustatomais planais
Palaiko IEEE 802.1 Q VLAN žymėjimą
Palaiko STP/RSTP/ERPS kilpų prevenciją ir audros kontrolę
Palaiko kabelio aptikimą gedimui nustatyti
Palaiko SNMP, Qo S, DHCP snooping ir ARP anti-spoofing funkcijas
Apsauga nuo viršįtampių: 6 k V

Patvirtinimai
Cheminių komponentų sertifikavimas:CE-Ro HS (201165 EU); WEEE (201219 EU); Reach (Regulation (EC) No.19072006)
EMC:CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Saugumas:CB (AMD1: 2009, AMD2: 2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Bendrosios savybės
Matmenys (P × A × G):440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
Bendras svoris:3.73 kg (8.22 lb)
Installation Mode:Rack (equipped with mounting ears)
Maks. energijos suvartojimas:400 W
Grynasis svoris:2.81 kg (6.19 lb)
Darbo drėgmė:5% to 95% (no condensation)
Darbinė temperatūra:0 °C to 45 °C (0 °F to 113 °F)
Energijos sunaudojimas miego režime:20 W
Maitinimo šaltinis:100 to 240 V AC, 50/60 Hz, Max. 7 A
Santykinė drėgmė:5% to 95% (no condensation)
Rėmas:Metal material
Sandėliavimo temperatūra:-40 °C to 85 °C (-40 °F to 185 °F)
Apsauga nuo viršįtampių:6 k V

Tinklo parametrai
Vidinė cache atmintis:4.1 Mbits
MAC adresų lentelė:8 K
Paketų perdavimo sparta:41.66 Mpps
Prievadai:24 × Gigabit Po E port, 2 × Gigabit fiber optical port
Perjungimo našumas:56 Gbps

Po E
Maks. Po E prievadų galia:30 W
Po E prievadas:Po E: Ports 1 to 24
Po E maitinimo biudžetas:370 W
Po E galios jungtis:8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Po E standartas:IEEE 802.3af, IEEE 802.3at

Programinės įrangos funkcijos
ACL:Port security strategy. Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries.
DHCP stebėjimas:DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disable by default.
HPP:Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the Po E power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
IPSG:IPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security entries.
Ryšio agregavimas:Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
Ilgo diapazono režimas:Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Loop Prevention:Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1 D STP. Support 802.1w RSTP. Support G.8032 ERPS.
Po E Watchdog:Ports 1 to 24: auto detect and restart the cameras that do not respond.
Prievadų izoliacija:Ports 1 to 26: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Prievado greičiolimitas:Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Paslaugų kokybė (Qo S):Qo S is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
Audros kontrolė:Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
System Maintenance:Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
VLAN:VLAN is used for network scale planning and network health improvement. Support 802.1 Q. Configurable VLAN ID from 1-4094.Support Trunk, Access port mode. Support Max. 4094 VLAN.
